CPM-II Multi Function Pick And Place Machine

Basic Info

Model: CPM-II
Type: Multi-Function
Spindle Qty: 8
Feeder Qty: 42 or 84(Option)
Placement Speed: 2,8000 CPH
Applicable Component:
0201~45mm IC (0.35mm Lead Pitch)

CPM-II Multi Function Pick And Place Machine

Basic Info

Model: CPM-II
Type: Multi-Function
Spindle Qty: 8
Feeder Qty: 42 or 84(Option)
Placement Speed: 2,8000 CPH
Applicable Component:
0201~45mm IC (0.35mm Lead Pitch)

Parammeter Specification

Parammeter Specification

ModelCPM-II
Placement Speed32000 cph
Placement Accuracy±0.04mm
Board SizeMinimum 50mm X 50mm
Maximum 510mmX460mm
Board Thickness0.4mm-3.0mm
Board Weight0.68kg below
PCB Transmission mechanismThree phrases
Track length1380mm
Nozzle Quantity8
Feeder Capacity42 slots
84 slots(Option)
Feeder Specification8mm-56mm
Applicable componentFrom the tiny chip 0201 to the large components
of 36mm with various of resistors, capacitors, IC and BGA ets.
Clamp WaySide-on, top and bottom
AlignmentScaning for centering
PowerAC380V
Air Source0.5-0.8 Mpa
Control SystemWindows 7 control platform of the Chinese and English Interface
Machine SizeL1380mm*W1800mm*H1450mm
Weight1900Kg
Option1.2M rail;
ANC(Automatic Nozzle Change)
ModelCPM-II
Placement Speed32000 cph
Placement Accuracy±0.04mm
Board SizeMinimum 50mm X 50mm
Maximum 510mmX460mm
Board Thickness0.4mm-3.0mm
Board Weight0.68kg below
PCB Transmission mechanismThree phrases
Track length1380mm
Nozzle Quantity8
Feeder Capacity42 slots
84 slots(Option)
Feeder Specification8mm-56mm
Applicable componentFrom the tiny chip 0201 to the large components
of 36mm with various of resistors, capacitors, IC and BGA ets.
Clamp WaySide-on, top and bottom
AlignmentScaning for centering
PowerAC380V
Air Source0.5-0.8 Mpa
Control SystemWindows 7 control platform of the Chinese and English Interface
Machine SizeL1380mm*W1800mm*H1450mm
Weight1900Kg
Option1.2M rail;
ANC(Automatic Nozzle Change)

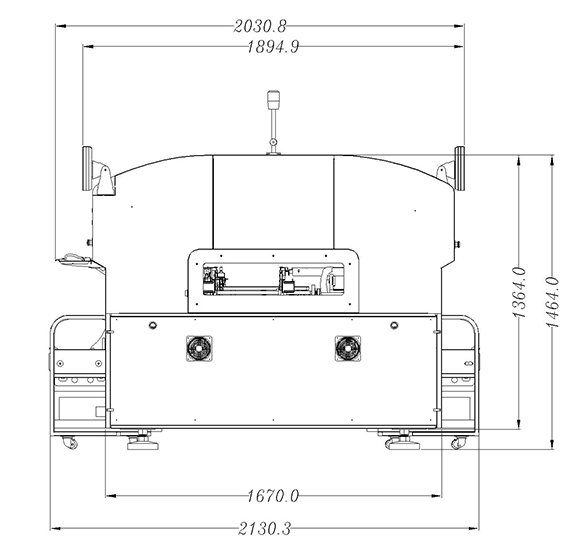

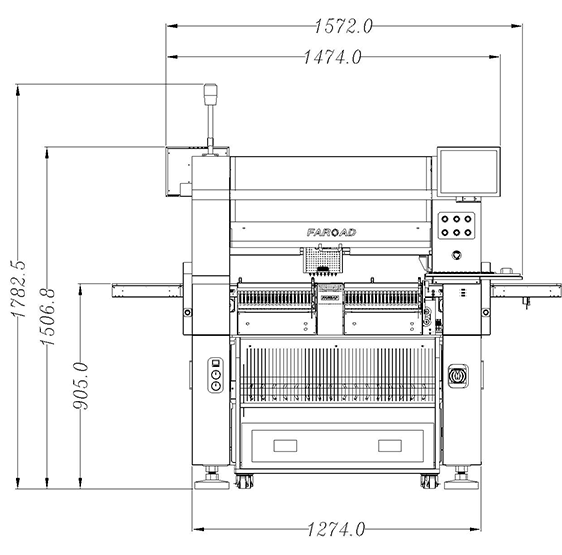

Machine Diagram

Machine Diagram

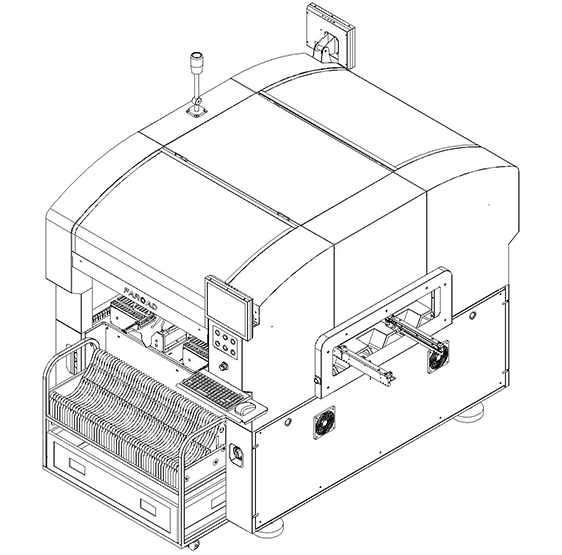

Illustration

Illustration

Machine Video

Machine Video
